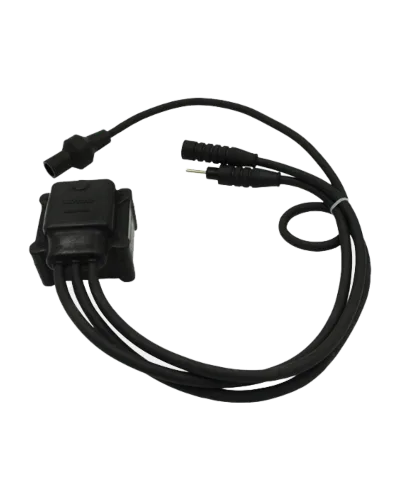

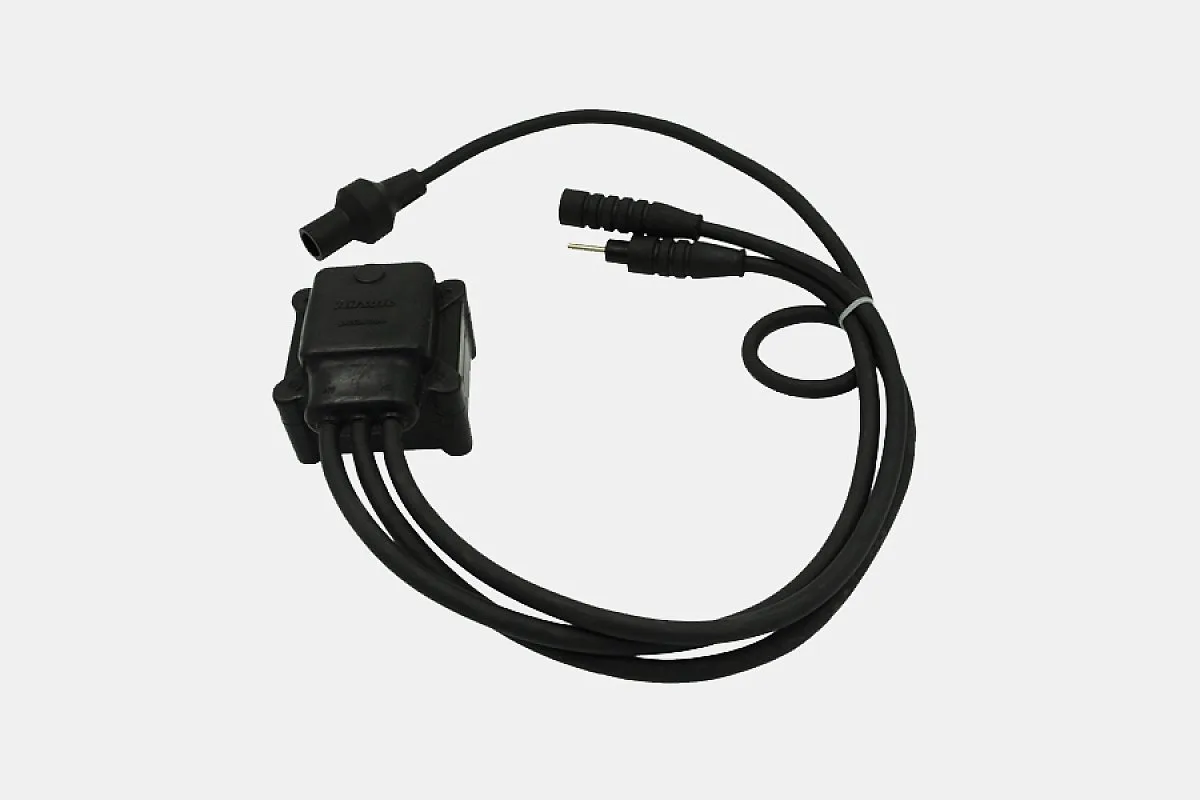

Isolation Transformatör

Specifications

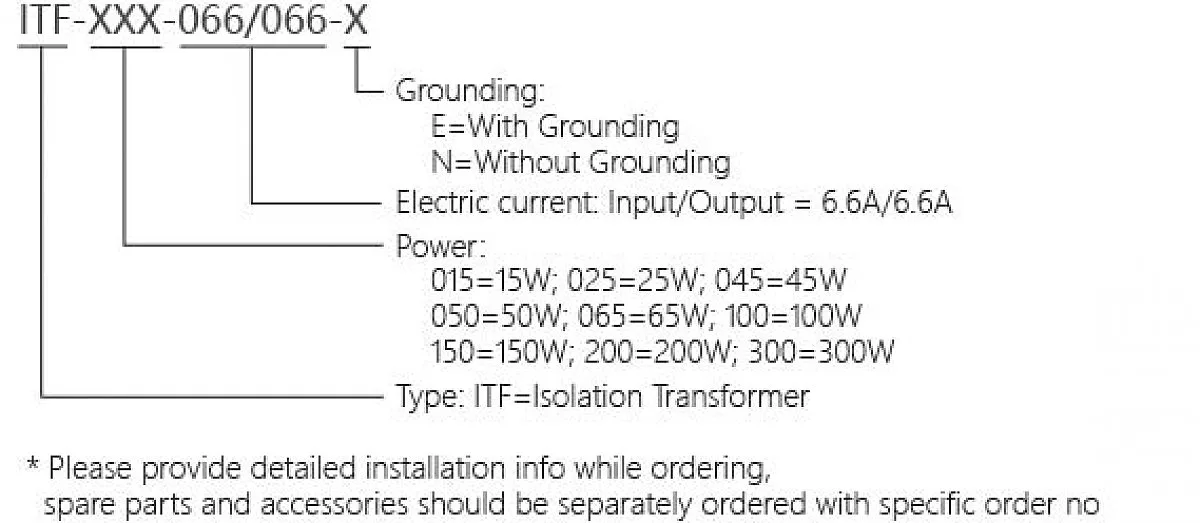

Product Model

ITF

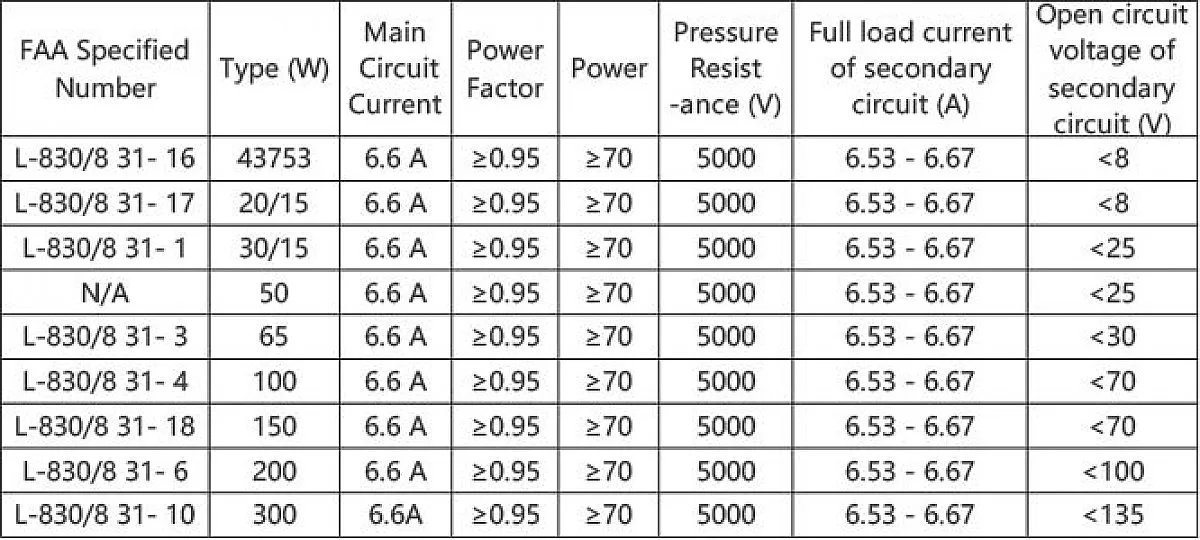

Specification

15W,25W,45W,50W,65W,100W,150W,200W,300W

Rated current

2.8~6.6A

Application

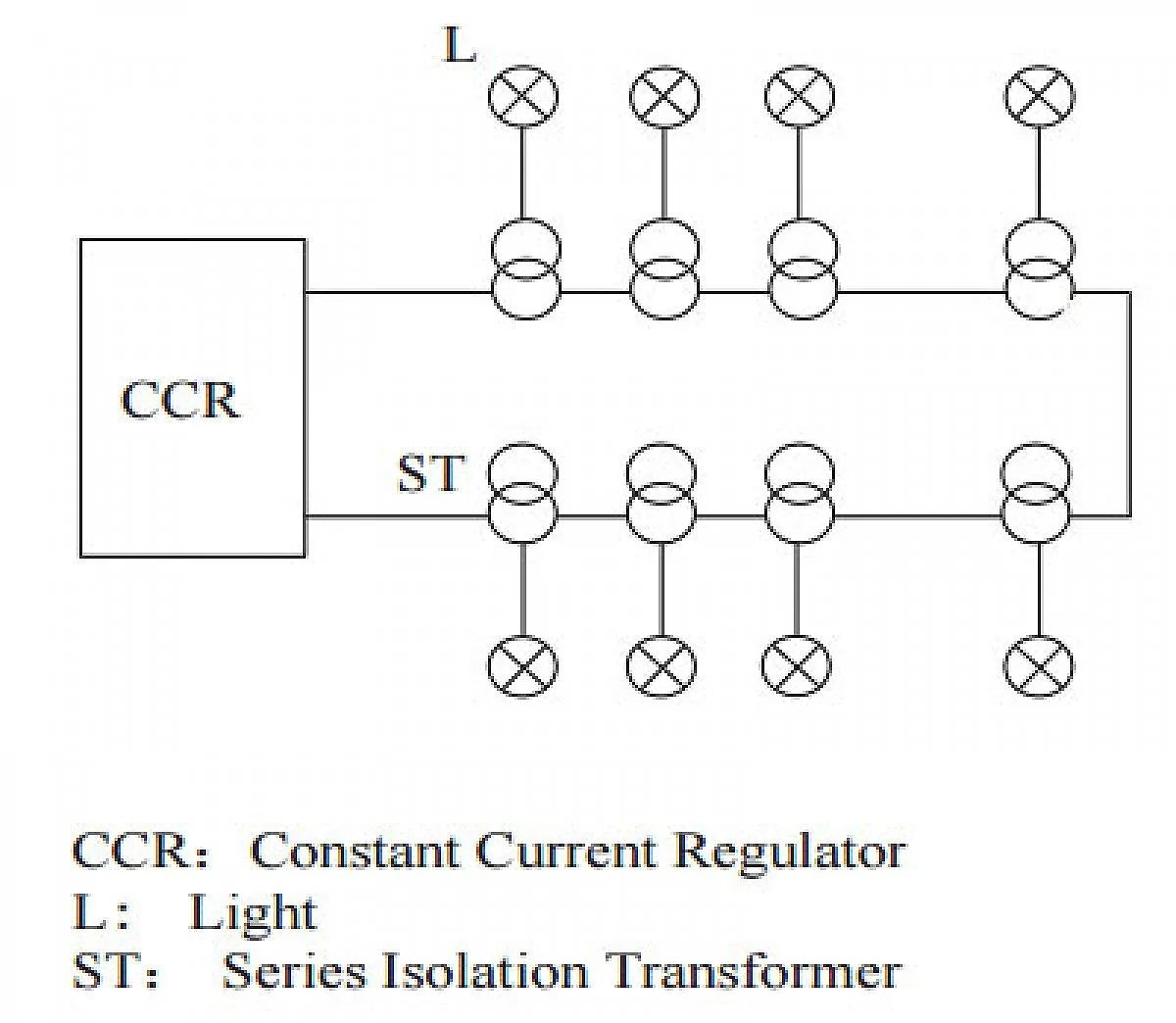

I,II,III category airports isolation transformer

FAA

L-830/831

Standards and compliance

• CAACMH/T 6008
• ICAODOC 9157,Part 5,Para.3.2
• IECTS 61823
• FAAAC 150/5345-47
• ICAODoc.9157

Details and drawings

Features

• All series of specifications, structure, electrical and other properties meet the requirements of FAA, ICAO and IEC;
• Use international standard plugs and sockets to meet the connecting requirements of FAA standard lamps;
• Made of special rubber and plastic materials, super anti-aging performance, corrosion resistance, kerosene resistance, urea resistance, to ensure long-term stability of high insulation and reliability;
• Use integral injection process to ensure the joint parts of the connector are firmly connected with the body;
• The internal frame is designed to ensure that the primary coil and the secondary coil are fully isolated;
• The use of high quality silicon steel sheet greatly guarantees the electrical performance of the product.
• 15KV high voltage resistance, hot insulation resistance greater than 7500 MEG, leakage current less than 2 A;
• The earthing resistance is less than 4 Ω. The grounding is reliable and high degree of safety;
• The working temperature is -55 ℃ to +65 ℃, stable work performance;
• With earthing or non grounding type can be selected by users;
• Special socket / plug protector to ensure plug and socket are free from moisture and dust.

Brochure

ITF

Certificates

ICO FAA IEC
