TASOL

Tasol

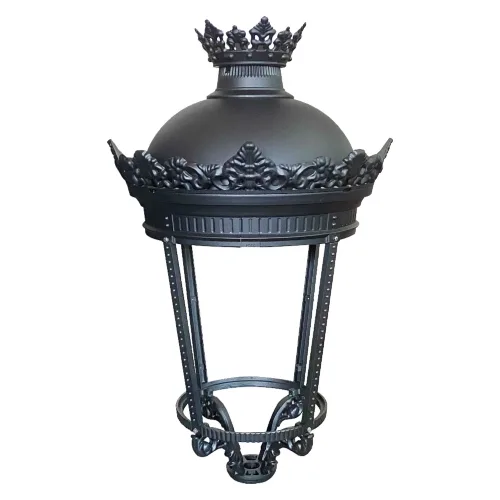

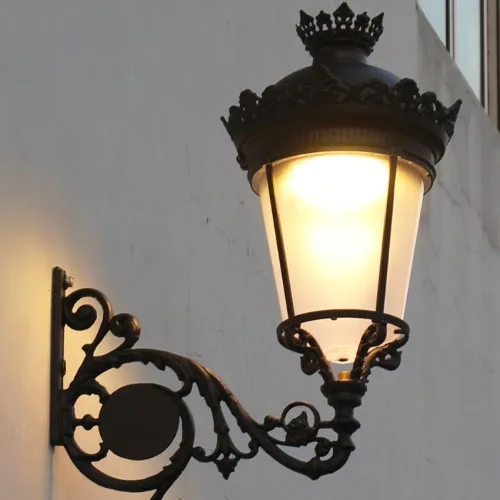

TASOL is a Fernandino-style lantern from the classic 'villa' family. Its design matches the familiar look of historic town centres, squares and streets.

LUMINIA · TASOL

EFFICACY: up to 125 lm/W
SUPPLY: AC 100-240 V
LIFE: > L96B10 100.000 h
TEMP.: -40 °C to +50 °C

Data sheet

Specifications

Efficacy: up to 125 lm/W
Supply: AC 100-240 V; 50/60 Hz
Lifetime: > L96B10 100.000 h (Ta = 25 °C)
Protection: IP66 / IK09 optical unit, IK10 luminaire
Surge protection: 10 kV
Operating temperature: -40 °C to +50 °C
Mounting: 3/4″ thread, 42/60 mm diameter
Net weight: 9.5 kg
Electrical class: I or II
Harmonic distortion (THD): < 15%
Upward light (ULOR): < 0,5%
Driver options: DALI, D4i, 1-10 V, CLO, NTC, time-based dimming up to 5 steps
Optional: 5- to 7-pin NEMA socket, Zhaga socket

Standards and compliance

UNEEN 60598-1
UNEEN 60598-2.3
UNEEN 62031
UNEEN 62471
UNEEN 62493
UNEEN 61347-2-13
UNEEN 62384
UNEEN-55015
UNEEN-61547
UNEEN-61000-3-2
UNEEN-61000-3-3
CECE
ENEC
RoHSRoHS

Details and drawings

TASOL is a Fernandino-style lantern from the classic 'villa' family. Its design matches the familiar look of historic town centres, squares and streets.

Its advanced LED light engine delivers technically efficient installations without giving up a traditional look.

Made of high-pressure die-cast aluminium with electrostatically applied, oven-cured paint for a durable, corrosion-resistant finish.

The top of the luminaire houses the optical unit (a PCB with high-efficiency LEDs) and the power and dimming driver. 4 mm flat tempered glass cover; tool-free opening.
