Cantilever

Passive safety half gantry for signs and all other types of traffic information and surveillance beside or above the road.

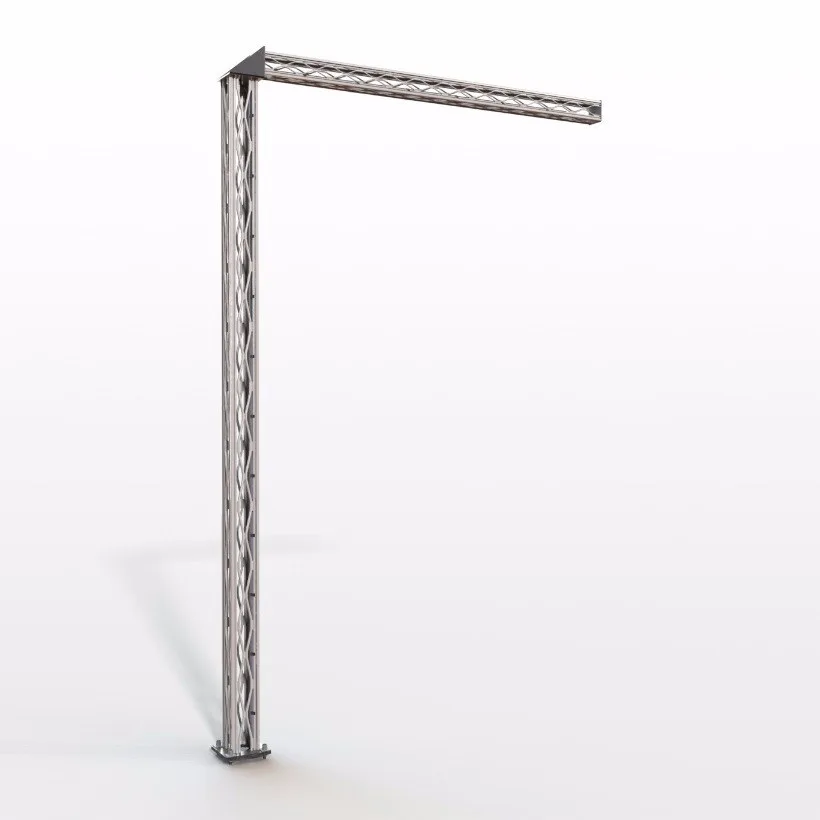

Complete half gantry includes:

• Lattix® passive safety leg
• Lattix® passive safety cantilever
• Foot plate with washers and bolts
• 90 degree connector
• Endplate at open end of cantilever

Product specifications

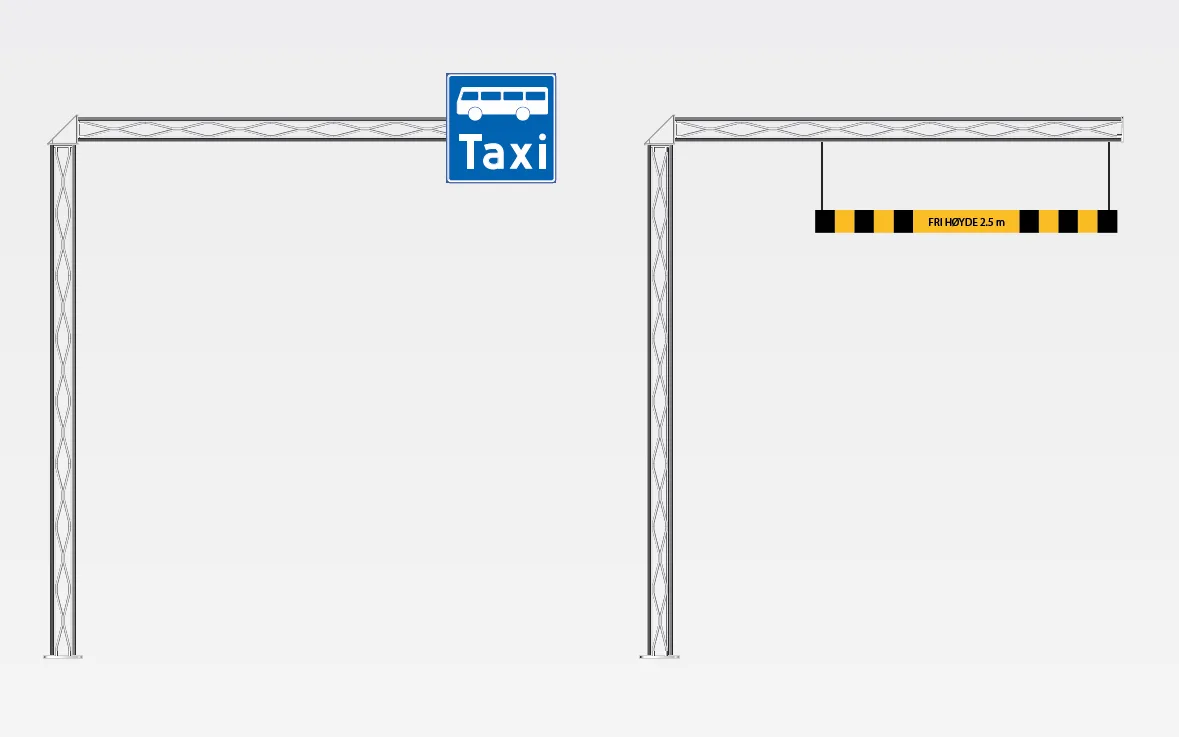

The Lattix® Cantilever system can be used for sign support, other information and surveillance equipment or other applications. The system is delivered as a complete, pre-assembled assembly including leg, cantilever, base plate and end plate at cantilever.

The mast elements of the cantilever are tested and approved according to:

• EN 12899-1, Fixed, vertical road traffic signs
• EN 12767, Passive Safety of support of structures for road equipment

All performance presumes sufficient foundation.

Material / Surface treatment

Mast elements: EN-AW 6063 T66

Base plate and connector: S355, Galvanized steel according to EN ISO 1461

Bolts: BUMAX 109

The mechanical capacities depend on the selected configuration.

The Lattix® Cantilever System can be coated (powder-coated) if desired.

Accessories

The Lattix® Half Gantry is delivered pre-assembled and includes necessary connectors if not specified differently.

Lattix® half gantries can be delivered with accessories kits:

• top plates,
• base plates,

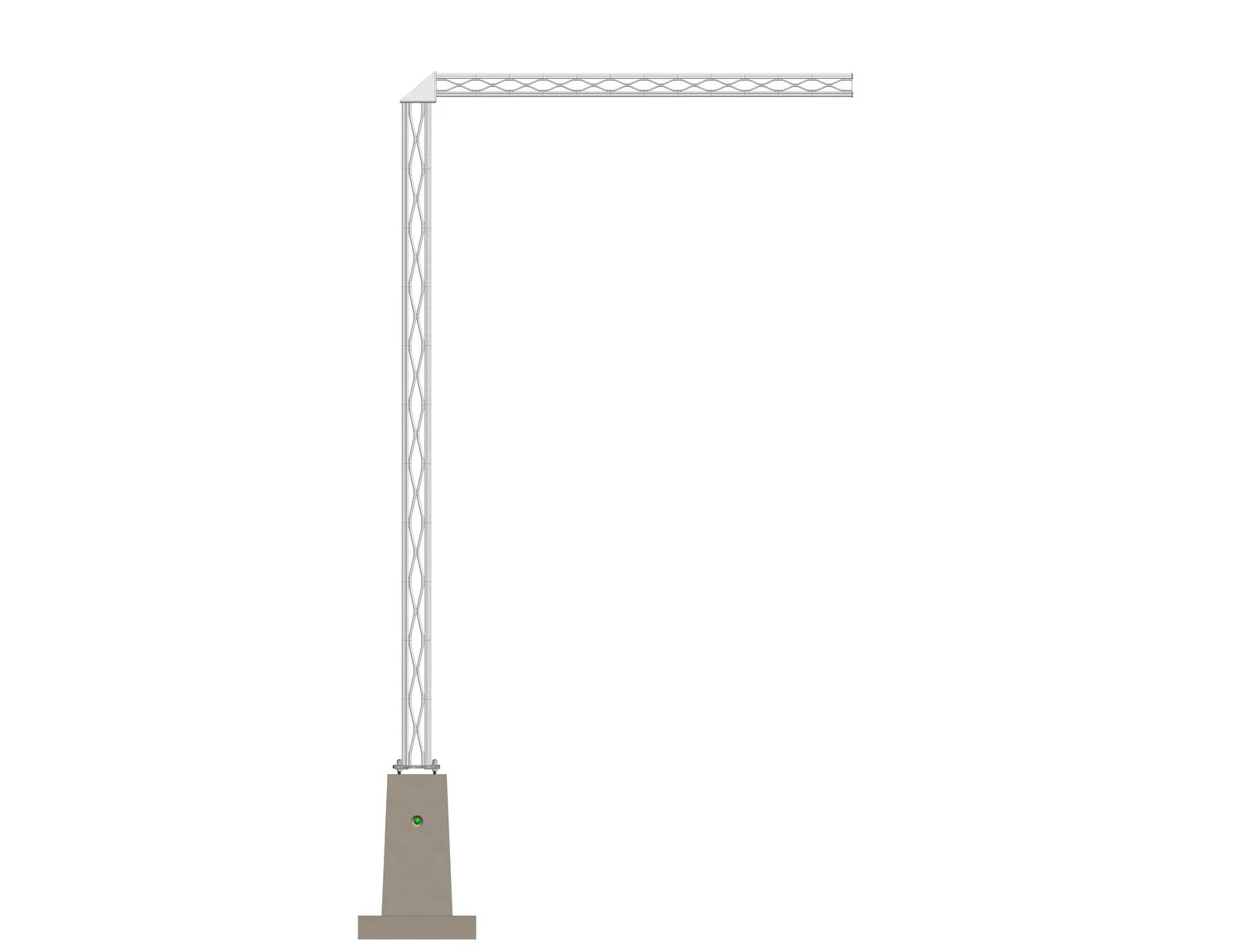

• foundations,
• sign clamps,
• cable covers,
• connector plates
• etc.

Variants

The Lattix Half gantry can be delivered in 3 major variants, dependent on the expected external loads.

These are

Within all variants the lengths of the mast elements are chosen according to customer needs.
