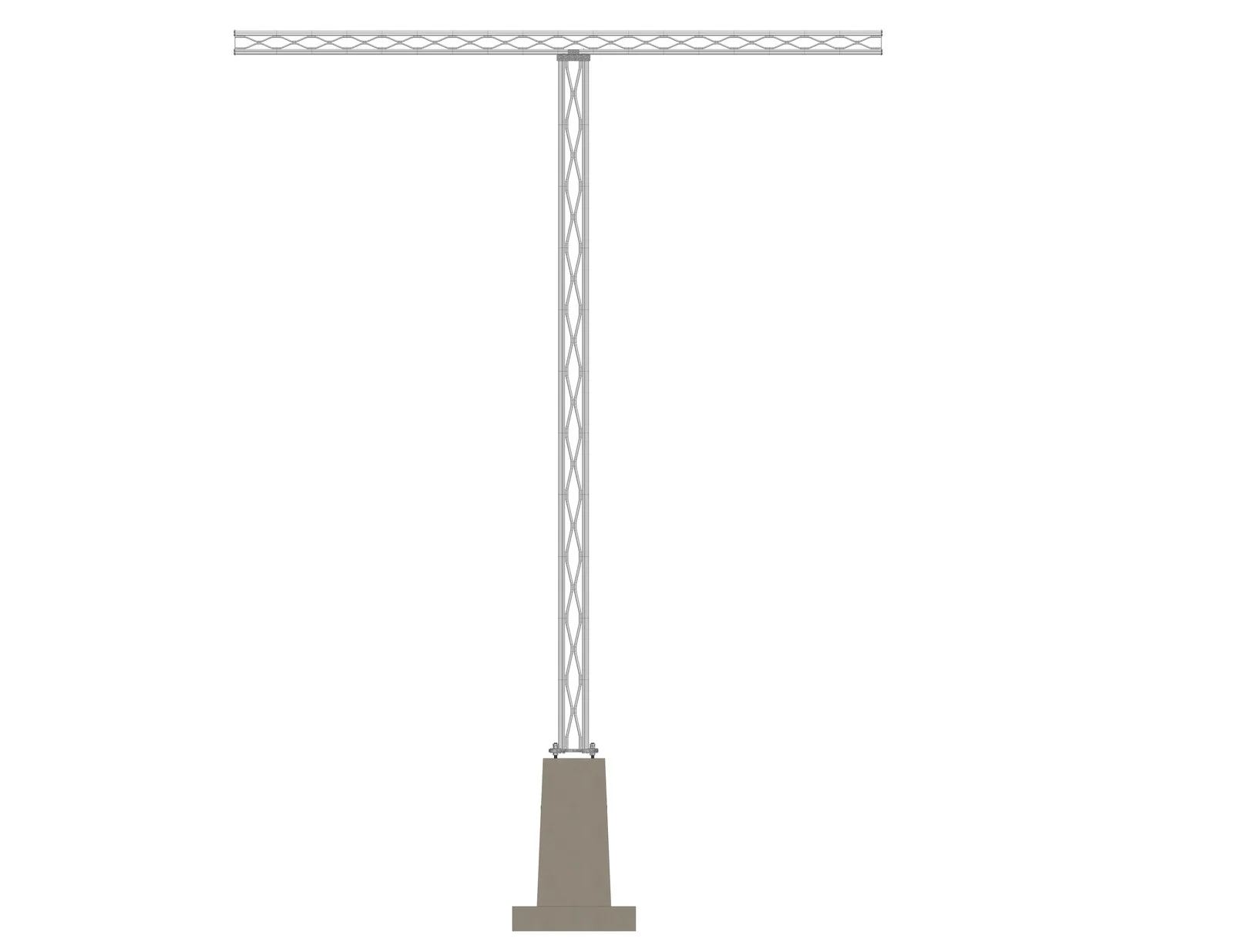

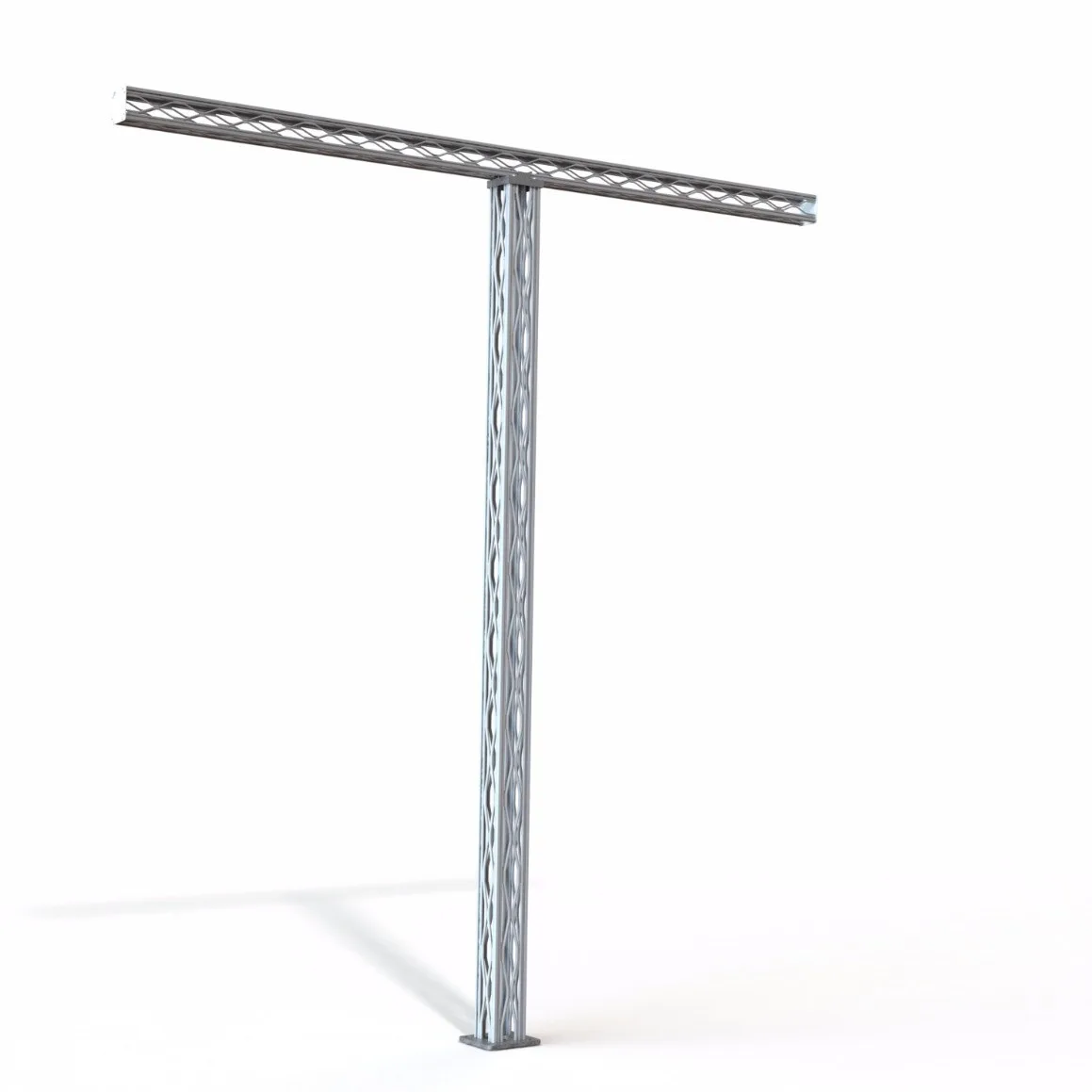

T-gantry

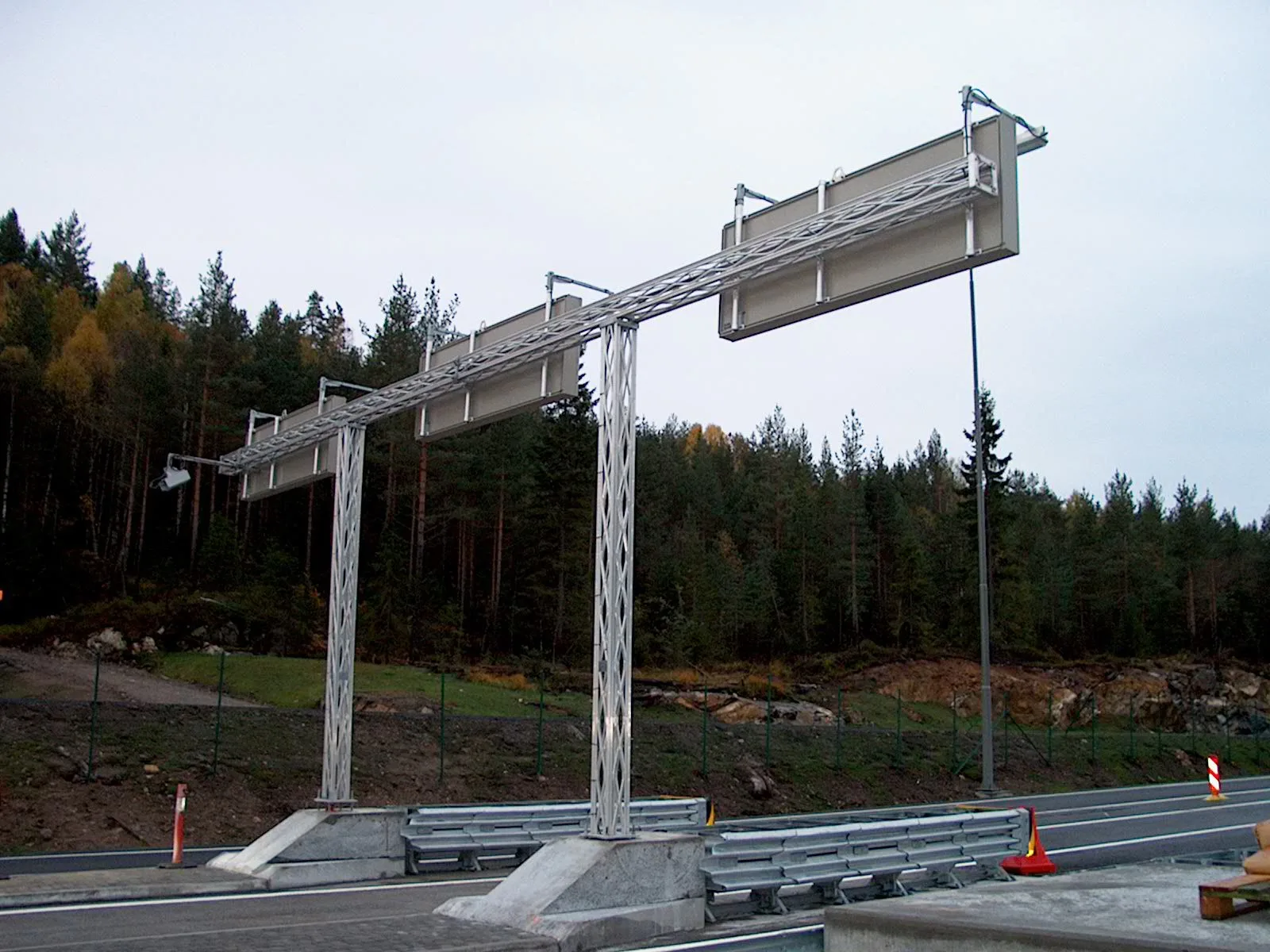

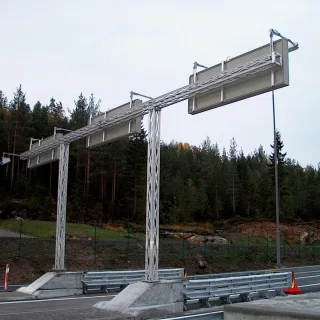

Passive safety T-gantry for signs and all other types of traffic information and surveillance beside or above the road or in between road lanes.

Complete T-gantry includes:

• Lattix® passive safety leg
• Lattix® passive safety T-bar
• Foot plate with washers and bolts
• 90 degree connector
• Endplates at open ends of T-bar

Product specifications

The Lattix® T-Gantry system can be used for sign support, other information and surveillance equipment or other applications. The system is delivered as a complete, pre-assembled assembly including leg, T-bar, base plate and end plates at transom.

The mast elements of the T-gantry are tested and approved according to:

• EN 12899-1, Fixed, vertical road traffic signs
• EN 12767, Passive Safety of support of structures for road equipment

All performance presumes sufficient foundation.

Material / Surface treatment

Mast elements: EN-AW 6063 T66

Base plate and connector: S355, Galvanized steel according to EN ISO 1461

Bolts: BUMAX 109

The mechanical capacities depend on the selected configuration.

The Lattix® Half Gantry System can be coated (powder-coated) if desired.

Accessories

The Lattix® T-gantry is delivered pre-assembled and includes necessary connectors if not specified differently.

Lattix® T-gantries can be delivered with accessories kits:

• end plates,
• base plates,
• foundations,
• sign clamps,
• cable covers,
• connector plates
• etc.

Variants

The Lattix T-gantry can be delivered in 2 major variants, dependent on the expected external loads.

Within all variants the lengths of the mast elements are chosen according to customer needs.
