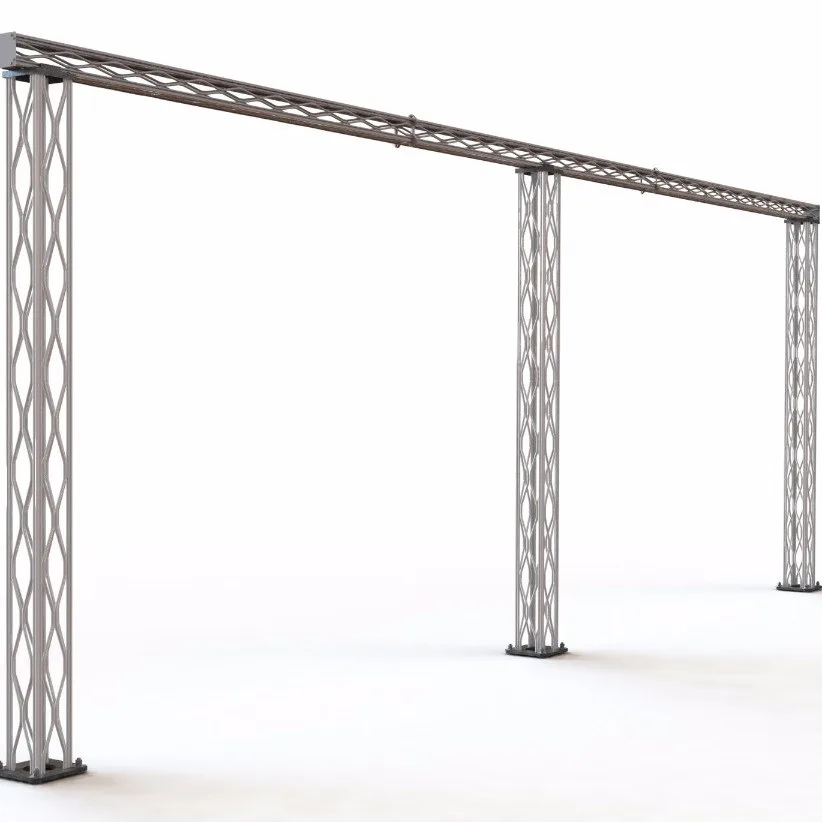

Gantry with 3 legs

Passive safety gantry with three legs for signs and all other types of traffic information and surveillance above the road with several lanes and a wide span

Complete gantry with three legs includes:

• Lattix® passive safety legs
• Lattix® passive safety transom
• Foot plates with washers and bolts
• 90 degree connectors
• Endplates at open end of transom

Product specifications

The Lattix® 4438 mast system can be used as mast for sign support, other information and surveillance equipment or other applications. The mast is delivered as a complete assembly including mast, base plate and top plate.

The mast is tested and approved according to:

• EN 12899-1, Fixed, vertical road traffic signs
• EN 12767, Passive Safety of support of structures for road equipment

Full-scale impact crash tests and simulations have been performed according to EN 12767 at a speed of 35 km/h and 100 km/h with 6,3 m mast length. Simulations show that the mast will have equal performance up to 8,623 m length. Consequently, the mast is approved for maximal 8,623 m and minimal 1,8 m from the ground to bottom of sign.

The sign mounted to a single mast should not weigh more than 200 kg and needs to be dimensioned according to local wind loads.

All performance presumes sufficient foundation.

The Lattix® 4438 mast system can be coated (powder-coated) if desired.

Accessories

The Lattix® Gantry with three legs is delivered pre-assembled and includes necessary connectors if not specified differently.

Lattix® Gantries with three legs can be delivered with accessories kits:

• top plates,
• base plates,
• foundations,
• sign clamps,
• cable covers,
• connector plates,
• etc.

Variants

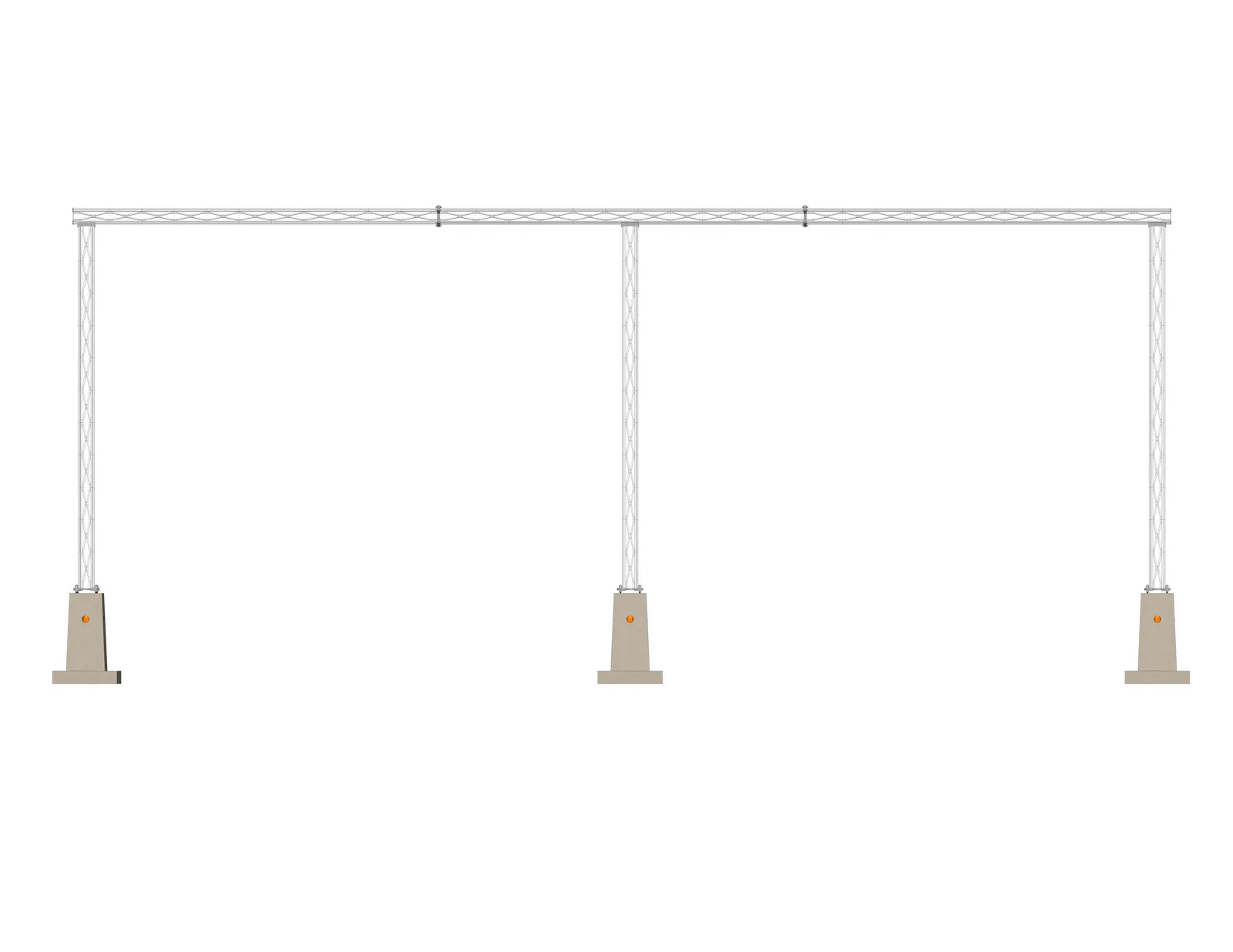

Lattix® Gantry with 3 legs with 2 joints up to 16 m width

The Gantry with three legs and 2 joints can be delivered in 5 major variants, dependent on the expected external loads. Within all variants the lengths of the mast elements are chosen according to customer needs.

Lattix® Gantry with 3 legs with 3 joints up to 24 m width

There are 5 major variants for up to 24 m width, dependent on the expected external loads. Within all variants the lengths of the mast elements are chosen according to customer needs.

Lattix® Gantry with 3 legs with 4 joints up to 32 m width

There are 3 major variants for up to 32 m width, dependent on the expected external loads. Within all variants the lengths of the mast elements are chosen according to customer needs.
